Raspberry Pi: Push-button + One(1) LED

2026-03-26 5 minute read 0 Comments #raspberry pi

This was my first attempt at getting a push-button to turn on an LED light with my Raspberry Pi w/Pi Cobbler setup.

I had a lot of fun putting the bits and pieces together, and I hope you enjoy reading about it!

What You Will Need

This project uses the Raspberry Pi GPIO (General Purpose Input/Output) pins — the row of pins on the board that lets you connect physical components like buttons, LEDs, sensors, and motors directly to the Pi. This is what makes the Raspberry Pi so compelling for hardware projects: you can write Python code and have it control real-world electronics.

For this project, I used:

A Raspberry Pi (any model with GPIO pins will work — I used a Model B)
An Adafruit Pi Cobbler — a breakout board that makes it easy to connect the GPIO pins to a standard breadboard
A breadboard
One LED (any color)
One push-button
Resistors (a 220Ω for the LED, and ideally a pull-down resistor for the button)
Jumper wires

Understanding GPIO Pins

The Pi Cobbler labels each pin with its GPIO number, which maps to the GPIO.BCM numbering mode used in the code. There are two numbering schemes for the GPIO:

BCM mode (GPIO.BCM) — uses the Broadcom chip numbering, which is what most tutorials reference
Board mode (GPIO.BOARD) — uses the physical pin numbers on the board

For this project I used BCM mode, with:

Pin 4 — connected to the push-button (input)
Pin 25 — connected to the LED (output)

Note: Never use the 5v power coming off the Raspberry Pi Cobbler for an input back to the Cobbler. The Pi is only designed to accept 3.3v of power.

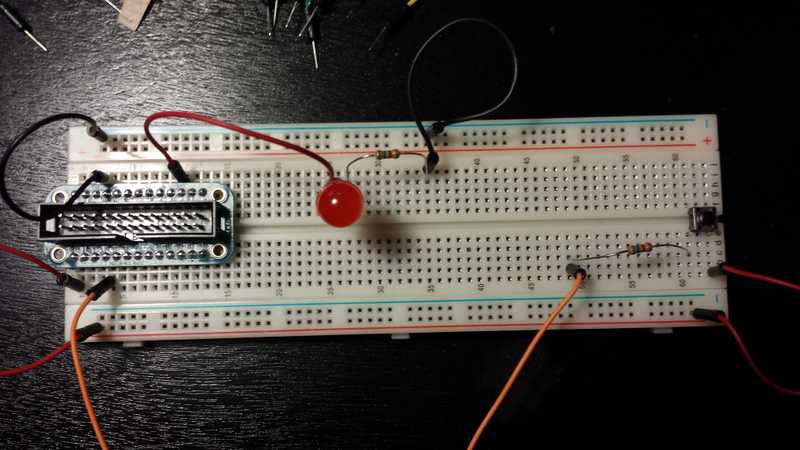

Wiring It Up

Connect one leg of the push-button to a 3.3v GPIO pin and the other leg to GPIO pin 4 through a pull-down resistor (this ensures the pin reads LOW when the button is not pressed, preventing “floating” input).
Connect the anode (+) of the LED to GPIO pin 25 through a 220Ω resistor.
Connect the cathode (−) of the LED to a ground (GND) pin.

The Code

I did a lot of Google searching to find a good example (Reading and writing from GPIO ports from Python). I followed the instructions to help with the wiring and used interactive python to test the wiring setup. The one problem with the tutorial is that the python is missing a few bits. When creating the python function, my_callback(). The function is missing the ever so important my_callback(self). Feel free to check out my code later on in this post.

The code below is very CPU intensive because of the while loop. There is such a thing as GPIO.wait_for_edge(CHANNEL), but if you add an event, such as I did with GPIO.add_event_detect(CHANNEL, GPIO.BOTH, callback=my_callback), the script will not run because it does not like both of those methods being used together.

To decrease the amount of CPU usage, linux has a nice command that you can set the priority of the script. For example, nice 18 ./raspi-push-button.py will run the script at a run priority of 18. Run priority levels are from -20 to 19. The lower the nice value means the higher priority; so -20 is the highest priority, and positive 19 is the lowest run priority.

#!/usr/bin/env python

import RPi.GPIO as GPIO

def my_callback(self):
    GPIO.output(25, GPIO.input(4))

GPIO.setmode(GPIO.BCM)
GPIO.setup(4, GPIO.IN, pull_up_down=GPIO.PUD_DOWN)
GPIO.setup(25, GPIO.OUT, initial=GPIO.LOW)
GPIO.add_event_detect(4, GPIO.BOTH, callback=my_callback)
run = 1
while (run != 0):
    try:
        pass
    except KeyboardInterrupt:
        run = 0
        GPIO.cleanup()
        print 'KeyboardInterrupt caught'
        break
GPIO.cleanup()
print 'EXITED!'

Also available here, raspi-push-button.

A Note on Python 3

The code above was written in 2013 and uses Python 2 syntax — notably print 'KeyboardInterrupt caught' without parentheses. In Python 3 (now the standard), this becomes print('KeyboardInterrupt caught'). The RPi.GPIO library itself works the same in both Python 2 and Python 3, so the GPIO calls are still valid.

If you are running a modern Raspberry Pi OS (Bullseye or later), Python 3 is the default. You can install the GPIO library with:

pip3 install RPi.GPIO

Or on newer Raspberry Pi OS releases, consider using the gpiozero library, which offers a simpler API for beginner projects:

from gpiozero import LED, Button
from signal import pause

led = LED(25)
button = Button(4)

button.when_pressed = led.on
button.when_released = led.off

pause()

This achieves the same result as the script above but with far less boilerplate. gpiozero handles the GPIO setup, cleanup, and event loop internally.

Troubleshooting

LED not lighting up?

Double-check the LED polarity — the longer leg (anode) goes toward the resistor and GPIO pin, the shorter leg (cathode) goes to GND.
Make sure the resistor value is right. Too high a resistance and the LED will be dim or off; no resistor at all risks burning out the LED.

Button not registering?

Check your pull-down wiring. Without a pull-down resistor, the input pin floats between states and may read HIGH randomly.
Try the software pull-down: GPIO.setup(4, GPIO.IN, pull_up_down=GPIO.PUD_DOWN) is already in the code above, which enables the Pi’s internal pull-down resistor.

Permission denied?

Run with sudo on older OS versions: sudo python3 raspi-push-button.py
On newer Raspberry Pi OS releases, your user may already have GPIO access via the gpio group.

What I Learned

This project taught me the fundamentals of GPIO on the Raspberry Pi:

Output pins can be set HIGH or LOW to power components like LEDs
Input pins read the state of external signals like button presses
Event detection (add_event_detect) is the right tool for responding to button changes — much better than polling in a tight loop
Callbacks run in a separate thread, so my_callback(self) is the correct signature for GPIO callbacks
The nice command is a quick way to deprioritize a CPU-heavy Python loop on a resource-constrained Pi

From here I went on to the two-LED toggle project — check it out below!
